If your TBS Fusion happens to be stuck in bootloader mode, you may flash the unit with the following method.
*A fix for this issue is deployed with any version of the Fusion firmware >=0.28
First, see if the unit is detectable in the TBS Agent X software. (Make sure you are running the latest version of the agent.)
- If YES,

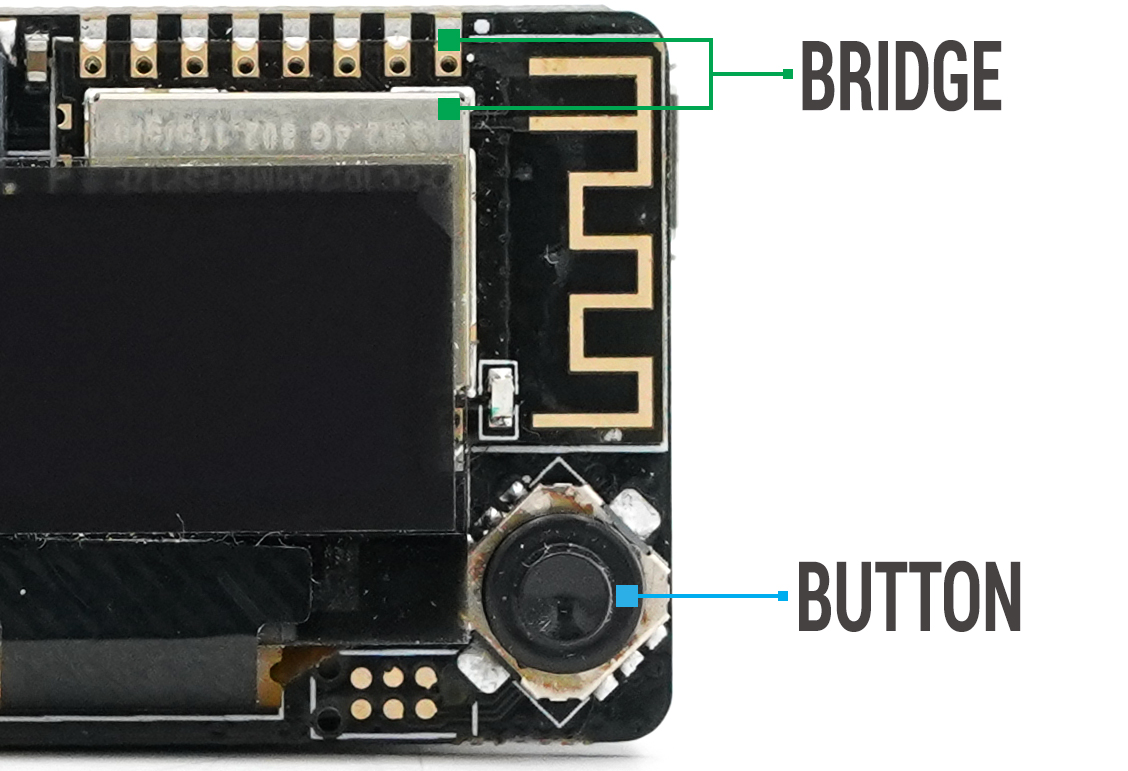

- Power down the unit and bridge the pads (Green) (The shielding of the module is GND.)
- With pads bridged plug in the USB cable.
- *The pads must remain bridged throughout the entire update process.
- Flash the fusion with the Agent X software.
- Unbridged the pads after the successful firmware update.
- If NO,
- Power down the unit and bridge the pads (Green) (The shielding of the module is GND.)
- With the pads bridged, hold the button down and plug in the USB cable
- *The pads must remain bridged throughout the entire update process.)
- Flash the fusion with the Agent X software,.
- Unbridged the pads after the successful firmware update.
