Modified on: Sat, 8 Jul, 2017 at 8:11 AM

If you physically damaged a Unify PRO HV main connector, then you still can direct solder the wires directly to the components.

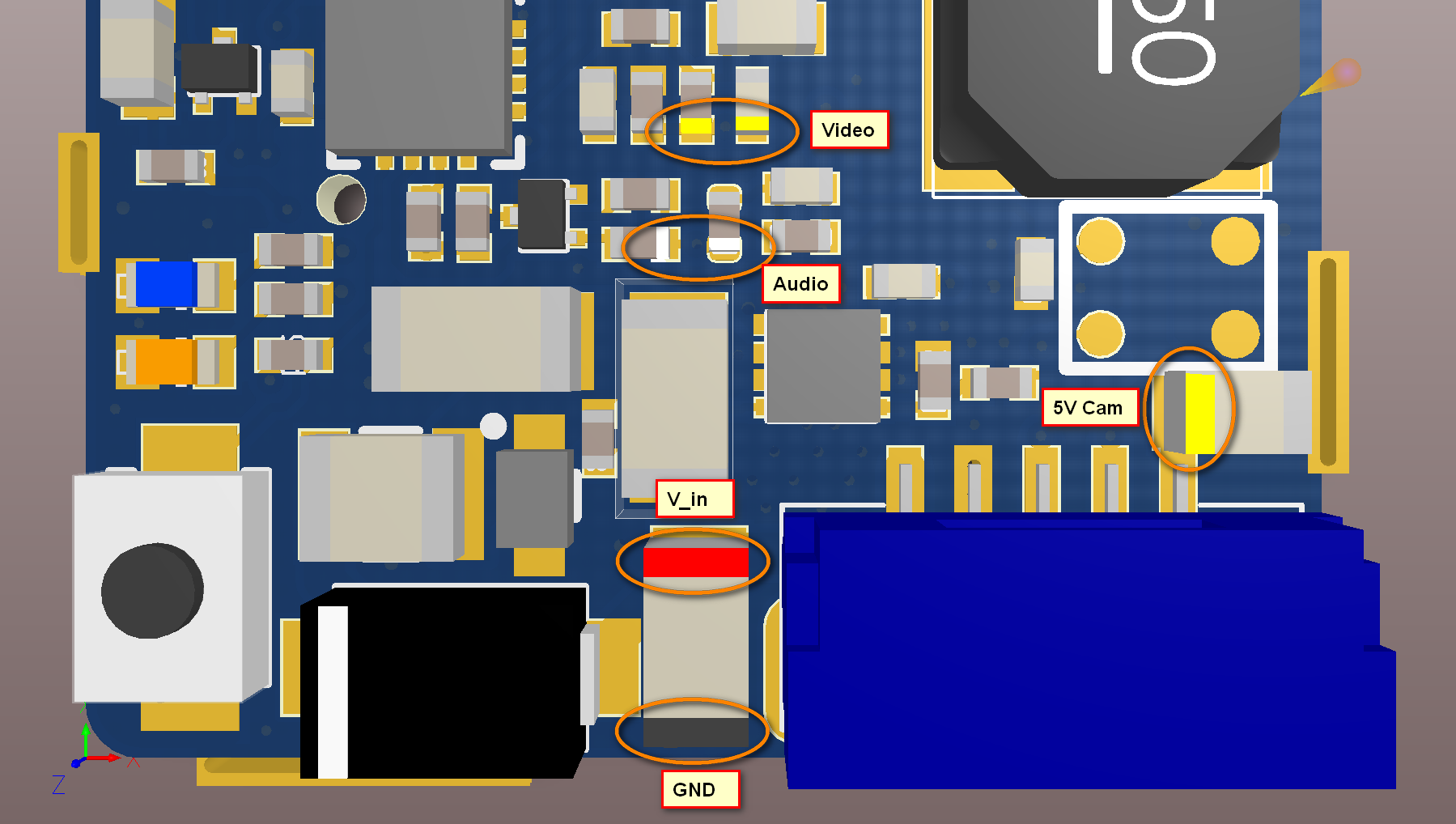

Here you see the direct solder points:

Note:

Video, yellow: solder to one or both pads

Audio, white: solder to one or both pads
